This page contains information releavant to maintaining your Archivematica installation.
On this page:
- Programatic access to indexed AIP data
- Delete Elasticsearch index
- Rebuild AIP or transfer index
- Data backup
Since version 0.9, Archivematica stores AIP file information, such as METS data, using Elasticsearch. This data can be searched from the Archival Storage area of the dashboard or can be interfaced with programmatically.
Programatic access to indexed AIP data¶
To access indexed AIP data using a custom script or application, find an Elasticsearch interface library for the programming language you’ve chosen to use. In Archivematica we use Python with the pyes library. In our developer documentation, we’ll outline the use of pyes to access AIP data, but any programming language/interface library, such as PHP and Elastica, should work.
Connecting to Elasticsearch
In this section we’ll run through an example of interfacing with Elasticsearch data using a Python script that leverages the pyes library.
The first step, when using pyes, is to require the module. The following code imports pyes functionality on a system on which Archivematica is installed.
import sys sys.path.append("/home/demo/archivematica/src/archivematicaCommon/lib/externals") from pyes import *
Next you’ll want to create a connection to Elasticsearch.
conn = ES('127.0.0.1:9200')
Full text searching
Once connected to Elasticsearch, you can perform searches. Below is the code needed to do a “wildcard” search for all AIP files indexed by Elasticsearch and retrieve the first 20 items. Instead of doing a “wildcard” search you could also supply keywords, such as a certain AIP UUID.
start_page = 1 items_per_page = 20 q = StringQuery('*') try: results = conn.search_raw( query=q, indices='aips', type='aip', start=start_page - 1, size=items_per_page ) except: print 'Query error.'
Querying for specific data
While the “StringQuery” query type is good for broad searches, you may want to narrow a search down to a specific field of data to reduce false positives. Below is an example of searching documents, using “TermQuery”, matching criteria within specific data. As, by default, Elasticsearch stores term values in lowercase the term value searched for must also be lowercase.
import sys sys.path.append("/usr/lib/archivematica/archivematicaCommon/externals") import pyes conn = pyes.ES('127.0.0.1:9200') q = pyes.TermQuery("METS.amdSec.ns0:amdSec_list.@ID", "amdsec_8") try: results = conn.search_raw(query=q, indices='aips') except: print 'Query failed.'
Displaying search results
Now that you’ve performed a couple of searches, you can display some results. The below logic cycles through each hit in a results set, representing an AIP file, and prints the UUID of the AIP the file belongs in, the Elasticsearch document ID corresponding to the indexed file data, and the path of the file within the AIP.
if results: document_ids =  for item in results.hits.hits: aip = item._source print 'AIP ID: ' + aip['AIPUUID'] + ' / Document ID: ' + item._id print 'Filepath: ' + aip['filePath'] print document_ids.append(item._id)
Fetching specific documents
If you want to get Elasticsearch data for a specific AIP file, you can use the Elasticsearch document ID. The above code populates the document_ids array and the below code uses this data, retrieving individual documents and extracting a specific item of data from each document.
for document_id in document_ids: data = conn.get(index_name, type_name, document_id) format = data['METS']['amdSec']['ns0:amdSec_list']['ns0:techMD_list']['ns0:mdWrap_list']['ns0:xmlData_list']['ns1:object_list']['ns1:objectCharacteristics_list']['ns1:format_list']['ns1:formatDesignation_list']['ns1:formatName'] print 'Format for document ID ' + document_id + ' is ' + format
To add additional data to an Elasticsearch document, you’ll need the document ID. The following code shows an Elasticsearch query being used to find a document and update it with additional data. Note that the name of the data field being added, “__public”, is prefixed with two underscores. This practice prevents the accidental overwriting of system or Archivematica-specific data. System data is prefixed with a single underscore.
import sys sys.path.append("/usr/lib/archivematica/archivematicaCommon/externals") import pyes conn = pyes.ES('127.0.0.1:9200') q = pyes.TermQuery("METS.amdSec.ns0:amdSec_list.@ID", "amdsec_8") results = conn.search_raw(query=q, indices='aips') try: if results: for item in results.hits.hits: print 'Updating ID: ' + item['_id'] document = item['_source'] document['__public'] = 'yes' conn.index(document, 'aips', 'aip', item['_id']) except: print 'Query failed.'
Delete Elasticsearch index through GUI¶

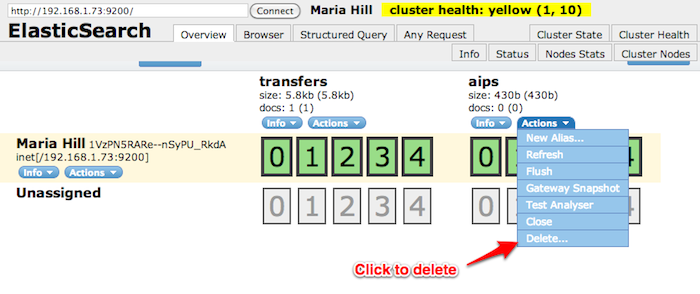

To help with Elasticsearch development, Archivematica comes with a plugin for Elasticsearch, called Elasticsearch Head, that provides a web application forcbrowsing and administering Elasticsearch data. It can be accessed at http://your.host.name:9200/_plugin/head/.
Elasticsearch Head will allow you to delete an index, if need be.
Delete Elasticsearch index programmatically¶
If, for whatever reason, you need to delete an Elasticsearch index programmatically, this can be done with pyes using the following code.
import sys sys.path.append("/home/demo/archivematica/src/archivematicaCommon/lib/externals") from pyes import * conn = ES('127.0.0.1:9200') try: conn.delete_index('aips') except: print "Error deleting index or index already deleted."
Rebuilding the AIP index¶
To rebuild the ElasticSearch AIP index enter the following to find the location of the rebuilding script:
Copy the location of the script then enter the following to perform the rebuild (substituting “/your/script/location/rebuild-elasticsearch-aip-index- from-files” with the location of the script):
/your/script/location/rebuild-elasticsearch-aip-index-from-files <location of your AIP store>
Rebuilding the transfer index¶
Similarly, to rebuild the ElasticSearch transfer data index enter the following to find the location of the rebuilding script:
Copy the location of the script then enter the following to perform the rebuild (substituting “/your/script/location/rebuild-elasticsearch-transfer- index-from-files” with the location of the script):
/your/script/location/rebuild-elasticsearch-transfer-index-from-files <location of your AIP store>
Elasticsearch troubleshooting help from AtoM documentation.
In Archivematica there are three types of data you’ll likely want to back up:
- Filesystem (particularly your storage directories)
MySQL is used to store short-term processing data. You can back up the MySQL database by using the following command:
mysqldump -u <your username> -p<your password> -c MCP > <filename of backup>
ElasticSearch is used to store long-term data. Instructions and scripts for backing up and restoring ElasticSearch are available here.
How to restart the Archivematica services¶
sudo stop archivematica-mcp-server sudo stop archivematica-mcp-client sudo /etc/init.d/apache2 stop sudo /etc/init.d/gearman-job-server stop sudo stop mysql sudo /etc/init.d/elasticsearch stop
sudo /etc/init.d/elasticsearch start sudo start mysql sudo /etc/init.d/gearman-job-server start sudo /etc/init.d/apache2 start sudo start archivematica-mcp-server sudo start archivematica-mcp-client
Error stack trace¶
“I am getting a white error page in the Dashboard. How can I find out what the error is?”
Seeing an full error stack trace for the Dashboard requires knowing how to edit a configuration file from the command line.
- SSH to the Archivematica server
- With your preferred text editor, open the dashboard settings file (vim shown in example; Note that you must use sudo to edit this file):
sudo vim /usr/share/archivematica/dashboard/settings/common.py
- Change the “DEBUG” flag from “False” to “True”
DEBUG = True
- Save the file
- Restart Apache
sudo apache2ctl restart
- Reload the dashboard page reporting the error in your browse
- Debug or report error
- Restore DEBUG to False and restart Apache to turn error reporting off again
Archivematica has been tested most extensively with Firefox and Chrome. There are known issues with Internet Explorer 11 which result in an inability to start transfers in the dashboard (Issue 7246). Minimal, but successful, testing has been done with Microsoft Edge.
